Trivy: the DevSecOps Swiss Army Knife

:!figure-caption:.

tl;dr

Unless you have been living under a rock, probably you have noticed nowadays security on the Software supply chain has become more and more important.

Also, if you are in a regulated industry such as health or fintech probably sooner or later you’ll need to generate a SBOM (software bill of materials) file for vulnerability management.

One tool that can help you find security issues in your software supply chain is Aqua Trivy: The all-in-one security scanner.

Overview

Most software organizations are always obsessed with speed as in "Ship it!! Customer needs it for yesteryay!!", hurrying up to meet these deadlines without taking other aspects into consideration.

One of those aspects not considered is the security of the supply chain. Dependencies are not checked, and not wanting to reinvent the wheel developers would prefer to install a package that does most of the work for them. However, the more third party dependencies we have the bigger risk to have critical vulnerabilities.

One tool easy to include in the SDLC pipeline that helps to find vulnerabilities and misconfigurations is Trivy. Given it can scan a code repository, a docker image, your infrastructure as code & configurations you could say it’s a DevSecOps swiss army knife (one all in one tool).

In this post, I will show how to use Trivy to find issues in your git repository and final artifacts.

Scanning for secrets and do it on a pre-commit hook.
Scanning your repository for vulnerabilities and licenses
Scanning docker images
Integrate Trivy on a Gitlab-CI pipeline

Before you start

If you want to follow along the examples in this post , you should have:

Trivy installed , (see Install Trivy)
python 3.10 or greater (for pre-commit)
Node.js with yarn
Docker (to build a docker image locally)
git, curl installed
Have a Gitlab account

Install Trivy

MacOS/Linux brew

Install Trivy by using brew package manager

brew install trivy

Linux

Follow the link below to install with your distribution

Install using your distribution package manager

Windows (unofficial with chocolatey)

Open a Windows PowerShell Admin session and run

choco install -y trivy

This is an unofficial trivy package, check the package github repo

GitHub releases

As with many CLI packages, the latest package is available in its repository releases.

Install from GitHub Release (Official)

Verifying the installation

Once installed you can issue your first trivy scan as follows

First Trivy scan

trivy repo https://github.com/aquasecurity/trivy-ci-test (1) (2)

1	`repo` is the trivy command to execute, in the future it will replace `fs` which is file system scanner
2	url of the repository to scan. If it’s a private repository an environment variable such as `$GITHUB_TOKEN` or `$GITLAB_TOKEN` must be defined. A local directory containing the cloned repository can be specified instead of the url.

By default, Trivy will scan for secrets and vulnerabilities, reporting them in a table format, in this case identified the project has a rust project and a python project and report the vulnerabilities for both.

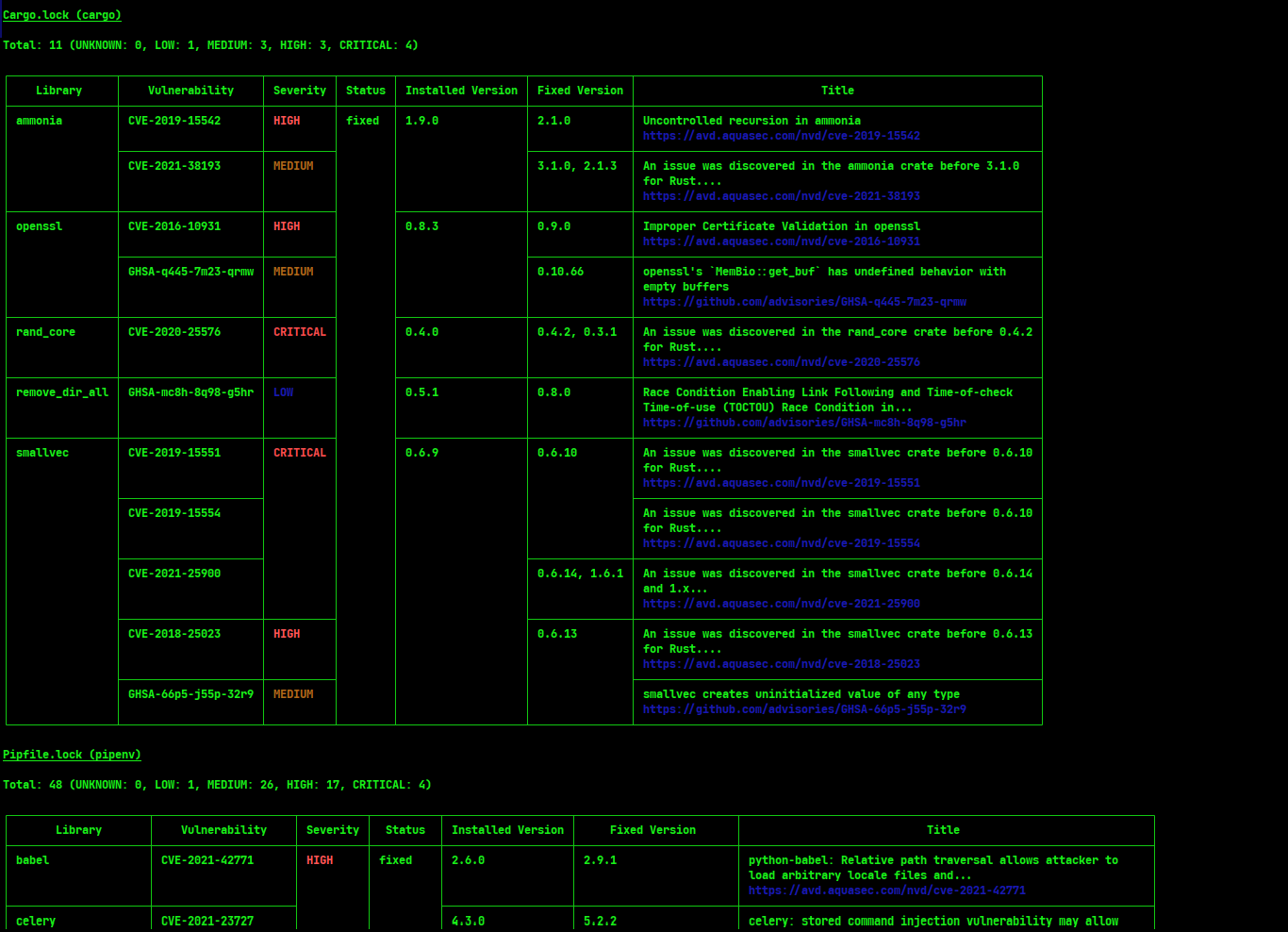

Figure 1. Console output of trivy repo command

Scanning a repository

Trivy can scan multiple targets, it can be a docker image, your cloud infrastructure or virtual machines or a file system / repository.

For the following big section we will use trivy repo command that can scan for secrets, misconfigurations, licenses and more important vulnerabilities in your dependencies.

Currently, this can also be done with trivy fs which stands for scanning a file system, but it will be completely replaced with trivy repo. See the details in this GitHub issue

Scanning for secrets with Trivy

Trivy can help to detect a variety of different credentials like AWS keys, API tokens, GitHub/Gitlab tokens and all kinds of credentials. Let’s see how.

For this first exercise we will use the juice-shop project, this is an OWASP example project that contains several vulnerabilities, used as an example for pen testing and other security testing activities. In this case we only care about secrets. So, with not much further ado let’s see how Trivy can help us to detect secrets.

Without even cloning the repository we can instruct Trivy to look for secrets in the repository with the following command:

Scan a repository for secrets

trivy repo --scanners secret -q https://github.com/juice-shop/juice-shop (1) (2)

1	with `--scanners` flag we instruct Trivy to only scan for secrets
2	`--quiet` or `-q` flag instructs Trivy to have reduced output

At the moment of writing this document, the previous Trivy command’s output would be something like this

trivy repo output

frontend/src/app/last-login-ip/last-login-ip.component.spec.ts (secrets)

Total: 1 (UNKNOWN: 0, LOW: 0, MEDIUM: 1, HIGH: 0, CRITICAL: 0)

MEDIUM: JWT (jwt-token)
═════════════════════════════════════════════════════════════════════════════════════════════════════════════════════════════════════════════════════════════════════════════════════════════════════════════════════════════════════════════════════════════════════════════════════════
JWT token
─────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────
 frontend/src/app/last-login-ip/last-login-ip.component.spec.ts:50 (1)
─────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────
  48
  49     xit('should set Last-Login IP from JWT as trusted HTML', () => { // FIXME Expected state seems to
  50 [ ocalStorage.setItem('token', '*******************************************************************************************************************************')
  51       component.ngOnInit()
─────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────



lib/insecurity.ts (secrets)

Total: 1 (UNKNOWN: 0, LOW: 0, MEDIUM: 0, HIGH: 1, CRITICAL: 0)

HIGH: AsymmetricPrivateKey (private-key)
═════════════════════════════════════════════════════════════════════════════════════════════════════════════════════════════════════════════════════════════════════════════════════════════════════════════════════════════════════════════════════════════════════════════════════════
Asymmetric Private Key
─────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────
 lib/insecurity.ts:23 (2)
─────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────
  21
  22   export const publicKey = fs ? fs.readFileSync('encryptionkeys/jwt.pub', 'utf8') : 'placeholder-publi
  23 [ ----BEGIN RSA PRIVATE KEY-----****************************************************************************************************************************************************************************************************************************************************************************************************************************************************************************************************************************************************************************************************************************************************************************************************************************************************************************************************************************************************************************************************************************************************-----END RSA PRIVATE
  24
─────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────



frontend/src/app/app.guard.spec.ts (secrets) (3)

Total: 1 (UNKNOWN: 0, LOW: 0, MEDIUM: 1, HIGH: 0, CRITICAL: 0)

MEDIUM: JWT (jwt-token)
═════════════════════════════════════════════════════════════════════════════════════════════════════════════════════════════════════════════════════════════════════════════════════════════════════════════════════════════════════════════════════════════════════════════════════════
JWT token
─────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────
 frontend/src/app/app.guard.spec.ts:40
─────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────
  38
  39     it('returns payload from decoding a valid JWT', inject([LoginGuard], (guard: LoginGuard) => {
  40 [ ocalStorage.setItem('token', '***********************************************************************************************************************************************************')
  41       expect(guard.tokenDecode()).toEqual({
─────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────

1	Found jwt-token secret on test file
2	Found a private-key secret on a lib file
3	Found jwt-token secret on test file

Trivy has found 2 secrets in test files and 1 secret on a library file, however if we check the exit code of the previous command we see it’s zero, meaning there was no error.

check previous command exit code

echo $?
0

Let’s tell Trivy to ignore the secrets on the spec/test files and to give us a non-zero (error) return code if it finds any secrets. We do this by using --skip-files and --exit-code flags as stated in the following command:

Trivy secret scan ignoring spec files and returning non-zero exit-code

trivy repo --scanners secret --skip-files '**/*.spec.*' --exit-code 10 -q https://github.com/juice-shop/juice-shop

Trivy repo output

lib/insecurity.ts (secrets)

Total: 1 (UNKNOWN: 0, LOW: 0, MEDIUM: 0, HIGH: 1, CRITICAL: 0)

HIGH: AsymmetricPrivateKey (private-key)
══════════════════════════════════════════════════════════════════════════════════════════════════════════════════════════════════════════════════════════════════════════════════════════════════════════════════════════════════════════════════════
Asymmetric Private Key
──────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────
 lib/insecurity.ts:23
──────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────
  21
  22   export const publicKey = fs ? fs.readFileSync('encryptionkeys/jwt.pub', 'utf8') : 'placeholder-publi
  23 [ ----BEGIN RSA PRIVATE KEY-----****************************************************************************************************************************************************************************************************************************************************************************************************************************************************************************************************************************************************************************************************************************************************************************************************************************************************************************************************************************************************************************************************************************************************-----END RSA PRIVATE
  24
──────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────

If we check the return code again:

trivy check previous command exit code

echo $?
10

Now it’s a non-zero exit code which it means error, this will be handy to abort the commit.

It is worth mentioning that the secrets are only reported on table format, if generating a html report or any other format, unless the report template includes it, the secrets won’t be included in such report. See GitHub issue

Using Trivy on a pre-commit-hook

Given all the work that needs to be done to fix issues when a secret make it’s way to a git repository or to an artifact, it’s wise to have a process to avoid credential leaking in the git repository or final deliverable packages.

One way to do this is with a pre-commit-hook, we will use pre-commit and pablomxnl/repo-secret-pre-commit which requires python.

Execute the following commands in the root of your git repository working copy.

Install pre-commit
Install pre-commit
```
pip install pre-commit
```

Add a .pre-commit-config.yaml file

pre-commit-config.yaml

  repos:
     -  repo: https://gitlab.com/pablomxnl/repo-secret-pre-commit.git
        rev: 0.0.2
        hooks:
        - id: repo_secret_pre_commit
          args:
          - --quiet

Execute command pre-commit install
install pre-commit hook
```
pre-commit install
```

From now on, every commit will be inspected with Trivy and if it finds any secret on the files included in the commit, the commit will fail.

pre-commit on system path and IDE’s, editors and shell

For the hook to work, pre-commit must be on the system path, available to your IDE or shell session.
In some operating systems is not possible to install these at the global level and requires to use a python virtual env created either using uv, pip or poetry.
JetBrains tools do a pretty good job picking this up. VS Code not so much

To test the hook is working, let’s try to commit a file containing secrets.

Generate a new file with secrets

curl https://raw.githubusercontent.com/trufflesecurity/test_keys/refs/heads/main/new_key -o newfile.toml

Execute git add for the file

git add newfile.toml

Attempt to commit it

git commit -m"test pre-commit hook"

Result of pre-commit hook

[INFO] Initializing environment for https://gitlab.com/pablomxnl/repo-secret-pre-commit.git.
[INFO] Installing environment for https://gitlab.com/pablomxnl/repo-secret-pre-commit.git.
[INFO] Once installed this environment will be reused.
[INFO] This may take a few minutes...
repo_secret_pre_commit...................................................Failed
- hook id: repo_secret_pre_commit
- duration: 0.17s
- exit code: 1

newfile.toml (secrets)

Total: 2 (UNKNOWN: 0, LOW: 0, MEDIUM: 0, HIGH: 0, CRITICAL: 2)

CRITICAL: AWS (aws-access-key-id)
════════════════════════════════════════
AWS Access Key ID
────────────────────────────────────────
 newfile.toml:2
────────────────────────────────────────
   1   [default]
   2 [ aws_access_key_id = ********************
   3   aws_secret_access_key = ****************************************
────────────────────────────────────────


CRITICAL: AWS (aws-secret-access-key)
════════════════════════════════════════
AWS Secret Access Key
────────────────────────────────────────
 newfile.toml:3
────────────────────────────────────────
   1   [default]
   2   aws_access_key_id = ********************
   3 [ aws_secret_access_key = ****************************************
   4   output = json
────────────────────────────────────────


Trivy finished with return code 1

So, the pre-commit hook was executed from the current shell, and since it failed, aborted the commit.

The following screenshot shows how the hook also aborted a commit done through the PyCharm user interface

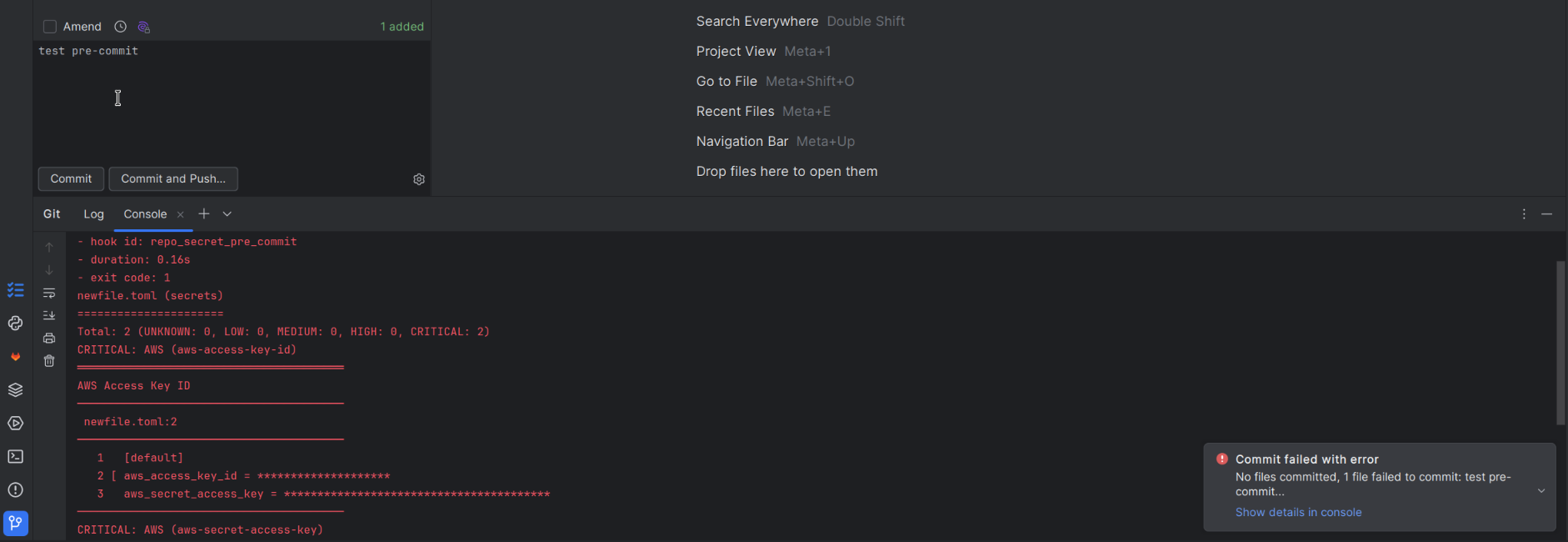

Figure 2. commit fail in PyCharm using the pre-commit hook

Scanning for vulnerabilities

For the following sections we will use a React todo web application example from the mozilla MDN web docs.

Clone the repository

clone repo

git clone https://github.com/mdn/todo-react

Change directory to the project and add a dependency with vulnerabilities
add dependency with vulnerability
```
cd todo-react && yarn add [email protected]
```
Scan for vulnerabilities and fail if found CRITICAL or HIGH
scan for vulnerabilities
```
trivy repo -q --scanners vuln --exit-code 1 --severity CRITICAL . (1)
```
1 The --severity flag filters for vulnerabilities of the given argument. If omitted defaults to all of them: "UNKNOWN,LOW,MEDIUM,HIGH,CRITICAL"

output of previous trivy repo command

yarn.lock (yarn)

Total: 2 (CRITICAL: 2)

┌─────────┬────────────────┬──────────┬────────┬───────────────────┬───────────────┬──────────────────────────────────────────────────┐
│ Library │ Vulnerability  │ Severity │ Status │ Installed Version │ Fixed Version │                      Title                       │
├─────────┼────────────────┼──────────┼────────┼───────────────────┼───────────────┼──────────────────────────────────────────────────┤
│ mysql2  │ CVE-2024-21508 │ CRITICAL │ fixed  │ 3.9.2             │ 3.9.4         │ mysql2: Remote Code Execution                    │
│         │                │          │        │                   │               │ https://avd.aquasec.com/nvd/cve-2024-21508       │
│         ├────────────────┤          │        │                   ├───────────────┼──────────────────────────────────────────────────┤
│         │ CVE-2024-21511 │          │        │                   │ 3.9.7         │ mysql2: Arbitrary Code Injection due to improper │
│         │                │          │        │                   │               │ sanitization of the timezone parameter...        │
│         │                │          │        │                   │               │ https://avd.aquasec.com/nvd/cve-2024-21511       │
└─────────┴────────────────┴──────────┴────────┴───────────────────┴───────────────┴──────────────────────────────────────────────────┘

Depending on the policies of your organization might want to fail the build on CRITICAL and HIGH, but also gather all of them, for example those UNKNOWN might need to be inspected to see the risk/impact that presents.

Scanning for licenses

Your organization hopefully has some policies of the kind of licenses can you use for your dependencies. Typically want to avoid having dependencies that may force you to redistribute your source code if your code base is proprietary or IP protected.

Trivy also has a license scanner that inspects the licenses of packages installed with apk, apt-get, dnf, npm, pip, gem, maven, gradle etc

Depending on which language and package manager your application has, for some it’s enough to scan the lock file or dependencies file, for example for a java maven or gradle project is enough the pom.xml file or the gradle.lockfile, however for others a install is required before scanning, for example Node.js projects require to do a npm|yarn|pnpm install before scanning for licenses.

Continuing with the React todo application from the previous point let’s scan for licenses

Issue a yarn install command
yarn install
```
yarn install
```
Scan for licenses which have a classification with severity HIGH,CRITICAL,UNKNOWN
trivy repo license scan
```
trivy repo -q --scanners license --severity CRITICAL,HIGH,UNKNOWN --skip-files ./LICENSE . (1)
```
1 with --skip-files ./LICENSE we exclude the LICENSE file of the application itself

At the moment of writing this, the output of the previous command is empty. Let’s add a dependency with a restrictive license that would be classified as severity HIGH

Add a dependency with a restrictive license
yarn add command
```
yarn add @etn-sc/web3
```

Issue the same Trivy repo command

trivy repo license scan

trivy repo -q --scanners license --severity CRITICAL,HIGH,UNKNOWN --skip-files ./LICENSE --exit-code 1

Now trivy finds the restrictive licenses and since we used the --exit-code 1 flag returns error:

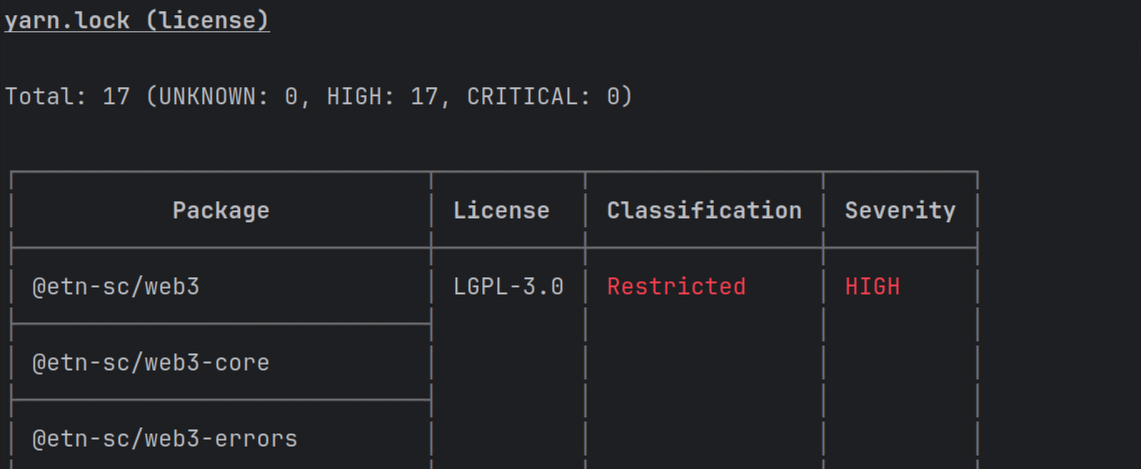

Figure 3. trivy repo license scan output

Scanning docker images

Similar to repo command , trivy offers the image command that scans either local or remote docker images.

Continuing with the example repository, lets add a nginx server Dockerfile to serve the bundle of the react app. Let’s choose intentionally an outdated base image to get vulnerabilities on the image.

Add a Dockerfile

Dockerfile

FROM nginx:1.21.0-alpine
COPY dist /usr/share/nginx/html
COPY nginx.conf /etc/nginx/conf.d/default.conf
EXPOSE 80
CMD ["nginx", "-g", "daemon off;"]

Build the Node.js project before building the docker image
yarn build
```
yarn build
```

Build the docker image

Docker build

docker build -t thedude/todo-react:0.0.1 . (1) (2)

1	The `-t` indicates the tag to identify the image, make sure to use the same on the trivy image command
2	In this case this docker image is not going to be pushed to any docker registry, if it were the tag must match your user/docker registry organization.

Scan the image with Trivy
trivy image
```
trivy image thedude/todo-react:0.0.1 --severity CRITICAL --exit-code 1
```
The previous command gives the following output

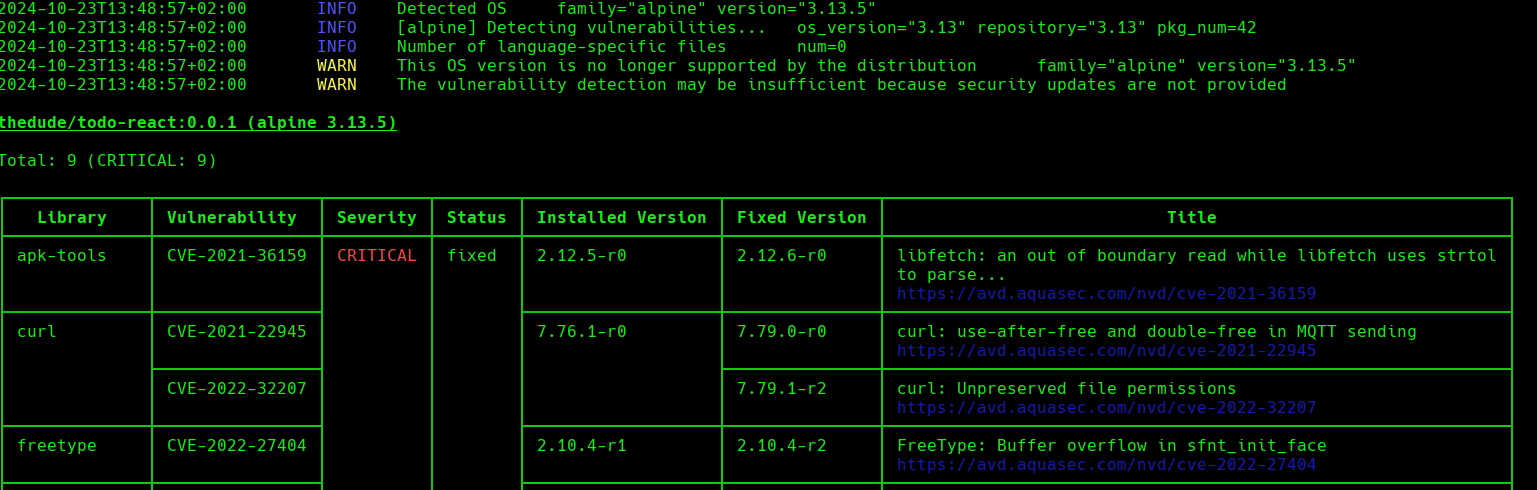

Figure 4. trivy image scan output

Note that besides the critical vulnerabilities there are some warnings about the OS version no longer supported. There is the flag --exit-on-eol 1 to force a non-zero result code if the base image is at end of life with no more updates.
Use a better base image

Now, let’s use a most recently built base image and preferably without known vulnerabilities, let’s change the first line of the Dockerfile from FROM nginx:1.21.0-alpine to FROM chainguard/nginx:latest
Updated Dockerfile
```
FROM chainguard/nginx:latest
COPY dist /usr/share/nginx/html
COPY nginx.conf /etc/nginx/conf.d/default.conf
EXPOSE 80
CMD ["nginx", "-g", "daemon off;"]
```

Rebuild the docker image

docker build

docker build  -t thedude/todo-react:0.0.2 .

Scan the new image with Trivy

trivy image

trivy -q image thedude/todo-react:0.0.2 --exit-code 1 --exit-on-eol 1

The result of the scan is now empty with no known vulnerabilities:

Output of trivy scan

thedude/todo-react:0.0.2 (wolfi 20230201)

Total: 0 (UNKNOWN: 0, LOW: 0, MEDIUM: 0, HIGH: 0, CRITICAL: 0)

$echo $?
0

Using Trivy on Gitlab CI pipeline

Finally, let’s integrate trivy into a Gitlab-CI pipeline.

Rename origin
git remote rename
```
git remote rename origin old-origin
```
Add origin using your gitlab username
git remote add origin
```
git remote add origin [email protected]:put_your_gitlab_user_name_here/todo-react.git (1)
```
1 Make sure to put your gitlab username / organisation path

Add the following initial gitlab-ci file

initial .gitlab-ci.yml

stages:
  - build
  - test (1)
  - publish (2)

include:
  - component: "$CI_SERVER_FQDN/to-be-continuous/node/[email protected]" (3)
    inputs:
      audit-disabled: true
      outdated-disabled: true
      semgrep-disabled: true
      sbom-disabled: true
      build-args: 'run build'
      publish-enabled: false

node-build:
  artifacts:
    reports:
    paths:
      - $NODE_PROJECT_DIR/$NODE_BUILD_DIR
      - $NODE_PROJECT_DIR/node_modules

1	Needed for node-audit job from the Node.js to-be-continuous cicd component, even that it is disabled
2	Needed for node-publish job from the Node.js to-be-continuous cicd component, even that it is disabled
3	Node.js to-be-continuous gitlab cicd component, disabling some jobs and customizing the build command

Modify package.json to include a test script
add test script to package.json
```
  "test": "echo test",
```
Commit and push the changes
git add / git commit / git push
```
git add .
git commit -m"Add pipeline file, fake test script"
git push --set-upstream origin main
```
Hopefully after this soon, you’ll see a pipeline executing just one job node-build and successfully just did yarn build

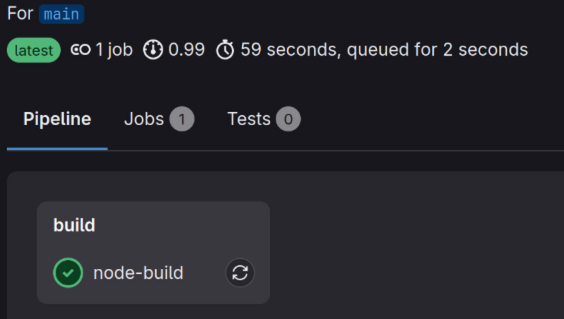

Figure 5. Gitlab CI sucessful pipeline node-build job
Add scan-package stage to the gitlab-ci stages list
gitlab-ci.yml
```
stages:
  - build
  - test
  - publish
  - scan-package
```

Add trivy cicd component and make license_scan job depend on the node-build job

gitlab-ci.yml

  #Trivy component
  - component: $CI_SERVER_FQDN/pablomxnl/trivy_component/gitlab-ci-trivy@~latest
    inputs:
      trivy-db-repository: "$CI_REGISTRY_IMAGE/trivy-db:2"
      trivy-java-db-repository: "$CI_REGISTRY_IMAGE/trivy-java-db:1"
      trivy-checks-bundle-repository: "$CI_REGISTRY_IMAGE/trivy-checks:1"
      container-scan-enabled: false
      trivy-license-severity-treshold: "CRITICAL,HIGH"
      trivy-vulnerability-severity-treshold: "CRITICAL"
      trivy-repo-stage: "build"

license_scan:
  needs:
    - node-build

Commit and push the .gitlab-ci.yml file
git commit and push
```
git add .gitlab-ci.yml
git commit -m"Add trivy cicd component"
git push
```
After pushing now the pipeline will include the jobs to run trivy repo commands

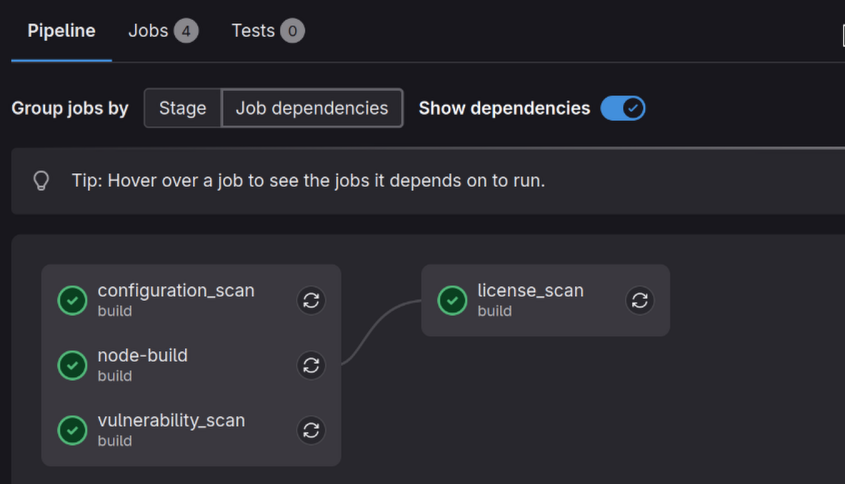

Figure 6. Pipeline with trivy repo jobs

Add package-build and package-test to the stages list

gitlab-ci.yml

stages:
  - build
  - test
  - package-build
  - package-test
  - scan-package
  - publish

Add the docker cicd component from the to-be-continuous project

gitlab-ci.yml

  - component: "$CI_SERVER_FQDN/to-be-continuous/docker/[email protected]"
    inputs:
      prod-publish-strategy: "auto"
      hadolint-disabled: true
      healthcheck-disabled: true
      sbom-disabled: true
      trivy-disabled: true

Remove the input container-scan-enabled: false from the trivy component or change its value to true, add the input docker-image-to-scan with the value specified on the snippet below

gitlab-ci.yml

  - component: $CI_SERVER_FQDN/pablomxnl/trivy_component/gitlab-ci-trivy@~latest
    inputs:
      docker-image-to-scan: "$CI_REGISTRY_IMAGE/snapshot:$CI_COMMIT_REF_SLUG"
      trivy-db-repository: "$CI_REGISTRY_IMAGE/trivy-db:2"
      trivy-java-db-repository: "$CI_REGISTRY_IMAGE/trivy-java-db:1"
      trivy-checks-bundle-repository: "$CI_REGISTRY_IMAGE/trivy-checks:1"
      trivy-license-severity-treshold: "CRITICAL,HIGH"
      trivy-vulnerability-severity-treshold: "CRITICAL"
      trivy-repo-stage: "build"

Add the Dockerfile and the changes to .gitlab-ci.yml to git and push
git add Dockerfile .gitlab-ci.yml
```
git add Dockerfile .gitlab-ci.yml
git commit -m "Enabling docker build and scan"
git push
```
After this, hopefully you will have a pipeline like the following picture:

Figure 7. Final pipeline with trivy repo and trivy image jobs

Other tools / services

I found out about Trivy when trying to implement vulnerability scanning for several projects, we were using Gitlab-CI and a google search took me to To be continuous project. As part of their documentation they publish a custom markdown security report of the container images used in the Gitlab templates provided by the project, this report is generated with Trivy, the report is here: TBC Vulnerability Report

However, Trivy is not the only alternative for this, there are tons of other projects or services that can be used:

For a more detailed list see this community post in the OWASP portal: Source Code Analysis Tools

Other tools for secret scanning

Other trivy pre-commit projects

mxab/pre-commit-trivy

Summary

In this post, we explored several of the functionalities of Trivy, focused mostly on repo and image and scanning for vulnerabilities, secrets and licenses.

But Trivy offers much more like scanning your AWS account infrastructure, generating sbom files, scanning kubernetes cluster for misconfigurations, it’s plugin ecosystem and much more.

Checkout their complete documentation and start incorporating Trivy into your Software Development Lifecycle today!

Comments

To add comments, reply in my Bluesky post
